Bottom-Mounted Immersion Heaters
Bottom-mounted immersion heaters were originally developed for use in coffee urns, but their compact, low-profile design makes them ideal for a wide range of applications. These heaters are perfect for steam tables, humidifiers, sterilizers, and other equipment that requires short element lengths and minimal space. Their efficient performance and space-saving construction make them a versatile choice for commercial and industrial heating needs.
Approvals
Standard Features
Tubular Elements

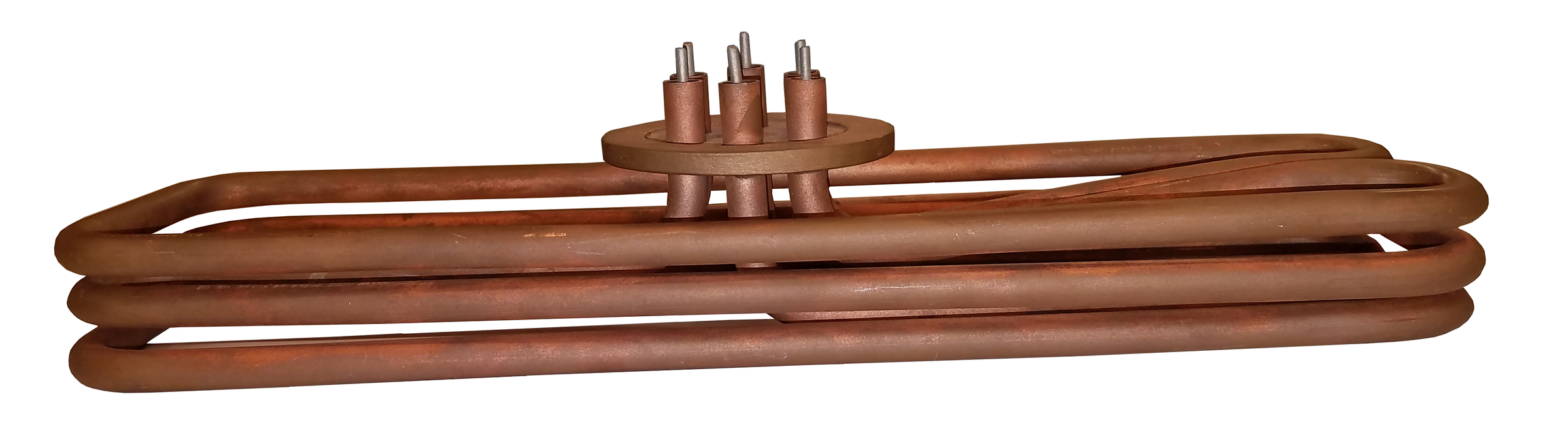

Made with either two or three copper-sheathed tubular elements that are silver soldered to a threaded brass fitting
Fitting
The fitting is installed through a 2-7/16” diameter hole in the bottom of the vessel, and secured to the vessel by a brass hex nut.
Enclosure
A NEMA 1 terminal box is standard on all units.
UL Listing
All standard bottom-mounted immersion heaters, with or without a low water cutout are UL listed.
Special Features
Allen Head Fitting – For convenience of installation, an Allen head fitting can be furnished on a NEMA 1 outlet box. This allows installation with a 3/8” Allen wrench rather than the wide jaw wrench required to fit the large hex nut on the NEMA 1 box.
